What Actually Happens Inside a Polaroid

By the time the print starts sliding out, the exposure is over. Light has already passed through the lens and struck layers of silver halide crystals inside the frame, leaving a latent image: a pattern the chemistry can read but your eyes cannot. Everything after that point is processing, the job a darkroom used to do, compressed into a sealed square of plastic in your hand.

That changes how to think about the next quarter of an hour. Nothing you do now changes what the camera captured, but plenty can spoil how it develops. Light, bending, shaking and cold all interfere with a reaction that is still running inside the print, and each one leaves its own recognisable mark.

The wide strip under the picture holds a thin foil pod of reagent, enough to develop that one frame. The rest of the frame is a sandwich: a light-sensitive negative coated with silver halide grains and image dyes at the back, a transparent cover sheet at the front, and the sealed pod waiting along the bottom edge.

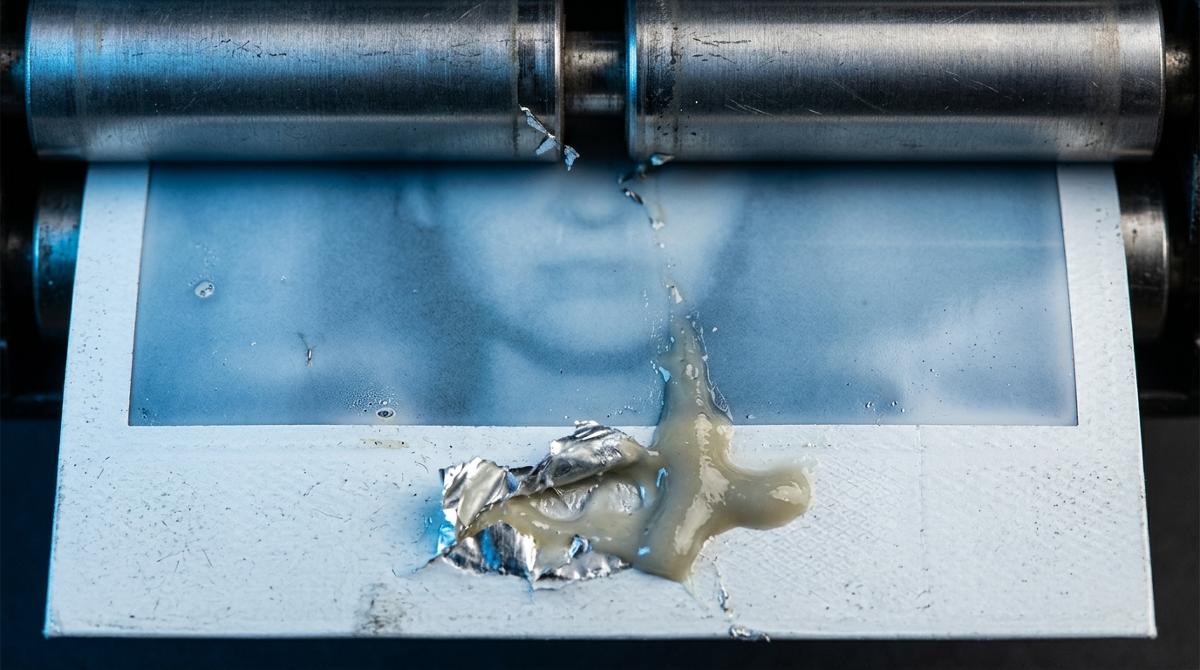

When you press the shutter, the camera exposes the frame and drives it out between a pair of rollers, bottom edge first. The rollers burst the pod and squeeze the reagent up across the image area as the print travels. Edwin Land described that spread as potassium hydroxide in a few drops of water, laid down in a layer 26 ten-thousandths of an inch thick. That pod is the whole reason one border is so much wider than the other three.

The rollers matter as much as the pod. The manufacturer's first fix for blue, flame-like marks along the bottom of a print is cleaning the rollers, because they are responsible for spreading the paste quickly and evenly, and the bottom is the part that meets daylight first. Other instant systems arrange their layers differently, which is part of why Polaroid and Instax behave so differently once a print is out.

Inside the negative sit three layers of silver halide crystals, one sensitive to blue light, one to green and one to red. Beneath each is a dye of the opposite colour: yellow under the blue layer, magenta under the green, cyan under the red. The reagent is strongly alkaline, and as it soaks down through the stack it sets those dyes free to move.

What follows is filtering in reverse. Where a layer was struck by light, its dye is held back; where it was not, the dye travels up to the image-receiving layer near the surface. Photograph a blue sky and the blue-sensitive layer is exposed, so the yellow stays put while magenta and cyan rise and mix into blue. Getting colour to work this way took Polaroid about 15 years, and the SX-70 film that launched fully self-developing prints in 1972 packed 17 layers into a unit about 2 millimetres thick.

Why the print starts out blank

Light has to pass through the front of the frame to reach the negative, so those layers are transparent, and the frame needs a light shield of its own while it develops. Land's answer was an opacifier mixed into the reagent: dyes that stay opaque while the chemistry is highly alkaline and turn transparent as the alkalinity drops. A timing layer and an acid layer bring the alkali back down once development has run its course, and the haze lifts to reveal the image. Current colour film takes about 10 to 15 minutes to get there; black-and-white film takes about 5 to 10.

The idea came from a three-year-old. In 1943, on a family vacation in Santa Fe, Edwin Land photographed his daughter Jennifer, and she asked why she couldn't see the picture right away. Film then went off to a lab and prints came back days later. Land, whose company was already doing well on polarizing filters, went for a long walk and later recalled that within an hour the camera, the film and the chemistry had become clear to him.

Turning that hour into a product took years. Land demonstrated the process publicly on 21 February 1947 at a meeting of the Optical Society of America in New York, and the first camera, the Model 95, went on sale at a Boston department store in 1948. Those first prints were sepia, and the photographer had to wait exactly 60 seconds before peeling the negative away from the positive. The sealed, self-developing square most people now picture as a Polaroid arrived with the SX-70 in 1972.

The first few seconds are the most fragile. If your camera has a film shield, the dark flap that rolls out over the print, leave the print under it until the opacifier has spread, then slide it out and lay it face down on a table, tuck it inside a jacket pocket or drop it back into the empty film box.

Keep it flat while it waits. Inside the frame the developer is still wet and has not set, so bending, creasing or squeezing lets the layers shift, and that shows up later as cracks or blobs in the image. People who shoot a lot of this film say to handle a new print gently for the first 15 to 30 minutes, which is worth remembering before you push one into a tight back pocket.

In cold weather, carry the camera under your coat between shots so the film pack stays warm, and let each print develop in an inside pocket close to your body. Some winter shooters put a disposable hand warmer into an empty film box and slip each print in beside it; in the pack-film era Polaroid sold a Cold Clip, two metal plates warmed in a pocket, for the same job. If you are still putting a kit together, the beginner instant photography setup walks through what to buy first.
